Controller & Others
Factors

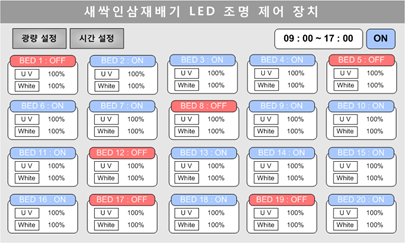

HMI 10.1” Touch panel PLC Multi-stage light controller

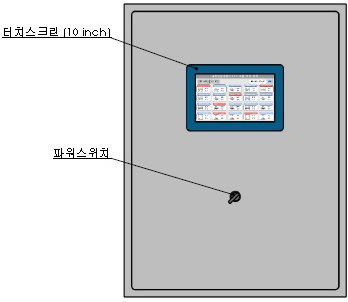

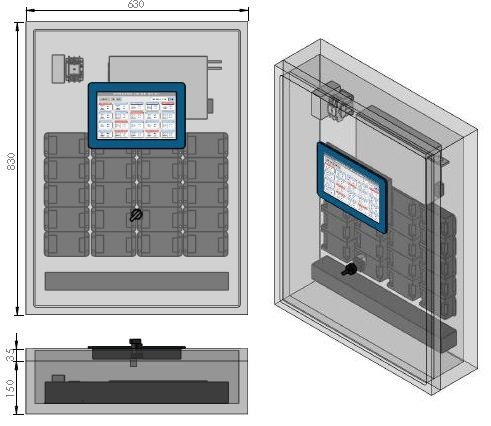

Control panel box


Enclosure box : IP 65 (In compliance with IEC 60529)







Light source

LED White

LED Red & Blue

*PPFD (umol/m2*s)

115 @L=200

100 @L=200

CT / Wavelength

5700 K

Red 660nm, Blue 450nm

LED Module

L1238mm x W40 x H34/mm

Power dissipation

30 W

* Photosynthetic Photon Flux Density










LP182W2-120C : LED White,

LP1827RB-120C : LED Red & Blue mixed
